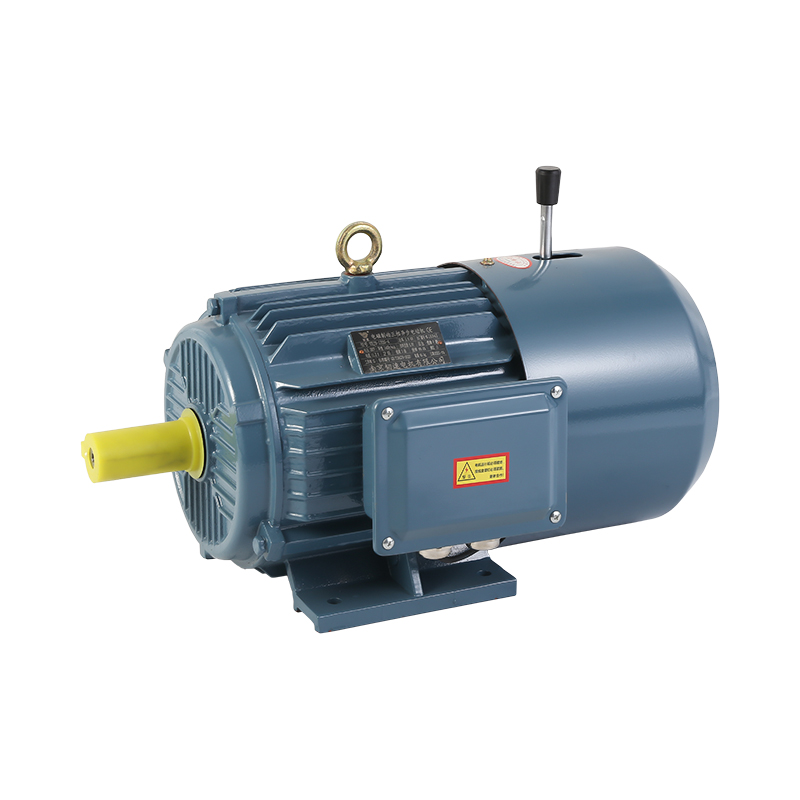

Structure of Three-Phase Asynchronous Motor

The three-phase asynchronous motor, also known as the induction motor, is a common type of electric motor used in a wide range of applications due to its simplicity, reliability, and efficiency.

Stator Core: The stator of a three-phase asynchronous motor comprises a laminated iron core. This core is made up of thin steel sheets stacked together to reduce eddy current losses. It provides the structural support for the stator windings and creates a path for the magnetic field lines generated during operation.

Stator Windings: The stator windings are typically made of copper or aluminum wire and are placed in the slots of the stator core. These windings are arranged in a specific pattern to create a rotating magnetic field when a three-phase alternating current is applied. The number of stator windings and their arrangement determine the motor's speed, torque, and performance characteristics.

Stator Frame: The stator frame holds the stator core and windings in place. It is typically made of cast iron or aluminum and provides mechanical rigidity and support to the stator assembly.

Rotor Core: The rotor core is another essential component of a three-phase asynchronous motor. Similar to the stator core, it is made of laminated steel sheets. The rotor core can take different shapes, such as squirrel-cage or wound rotor, depending on the motor's design.

Rotor Windings: In squirrel-cage motors, the rotor consists of a set of short-circuited conductive bars or "squirrel-cage" bars. These bars are made of aluminum or copper and are placed within the rotor core slots. In wound rotor motors, the rotor windings are connected to external terminals, allowing for external control and variable-speed operation.

End Rings: Squirrel-cage rotors are equipped with end rings on each end to short-circuit the rotor bars, allowing for the flow of induced currents. These end rings are typically made of copper or aluminum and ensure that the rotor operates as a closed loop.

The space between the stator and rotor is known as the air gap. It is a critical parameter in motor design, as the size of the air gap affects the motor's efficiency and performance. A smaller air gap results in higher efficiency but may lead to increased mechanical losses due to friction. A larger air gap reduces efficiency but may improve the motor's robustness.

Bearings are used to support the rotor and allow it to rotate within the stator. Common bearing types include ball bearings and sleeve bearings. Proper lubrication is necessary to reduce friction and wear, ensuring the motor's longevity.

The motor housing or frame encases the entire motor assembly, providing protection from environmental factors, mechanical damage, and electrical hazards. It also serves as a mounting point for the motor and provides ventilation to dissipate heat generated during operation.

The terminal box is an enclosure mounted on the motor housing and contains electrical terminals for connecting the motor to an external power source. It is where the three-phase power supply is connected to the stator windings.

Efficient cooling is crucial to maintaining the motor's temperature within safe operating limits. Three-phase asynchronous motors employ various cooling methods, including natural convection, forced air cooling, and liquid cooling, depending on the application and motor size.

Depending on the application and requirements, three-phase asynchronous motors may include additional accessories such as thermal protection devices (thermal switches or sensors), vibration sensors, and noise reduction features.

The structure of a three-phase asynchronous motor is composed of several essential components, including the stator, rotor, air gap, bearings, housing, terminal box, cooling system, and various accessories. The interaction of these components creates the fundamental mechanism that allows these motors to convert electrical energy into mechanical motion.
